Written by Doug Issichopoulos, dougissi.com

Feb 6, 2020

Imports

In [1]:
import pandas as pd
import networkx as nx

Example 1

Data

In [2]:
data = {
    'A': {'B':1, 'C':1},
    'B': {'A':1, 'C':1},
    'C': {'A':1, 'B':1, 'D':1, 'E':1},
    'D': {'C':1},
    'E': {'C':1},
}
df = pd.DataFrame(data).fillna(0)
df.sort_index(inplace=True)
df.sort_index(axis=1, inplace=True)
df
Out[2]:
A B C D E
A 0.0 1.0 1.0 0.0 0.0
B 1.0 0.0 1.0 0.0 0.0
C 1.0 1.0 0.0 1.0 1.0
D 0.0 0.0 1.0 0.0 0.0
E 0.0 0.0 1.0 0.0 0.0

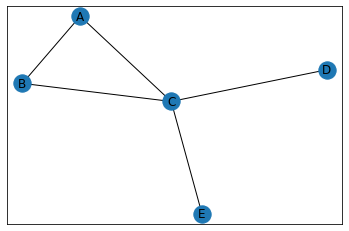

Plot

In [3]:
G = nx.Graph(df)
pos = nx.spring_layout(G)
nx.draw_networkx(G, pos=pos)

Count Triangles

In [4]:
S1 = df.values
S1
Out[4]:
array([[0., 1., 1., 0., 0.],
       [1., 0., 1., 0., 0.],
       [1., 1., 0., 1., 1.],
       [0., 0., 1., 0., 0.],
       [0., 0., 1., 0., 0.]])
In [5]:
S2 = S1.dot(S1)
S2
Out[5]:
array([[2., 1., 1., 1., 1.],
       [1., 2., 1., 1., 1.],
       [1., 1., 4., 0., 0.],
       [1., 1., 0., 1., 1.],
       [1., 1., 0., 1., 1.]])
In [6]:
S3 = S2.dot(S1)
S3
Out[6]:
array([[2., 3., 5., 1., 1.],
       [3., 2., 5., 1., 1.],
       [5., 5., 2., 4., 4.],
       [1., 1., 4., 0., 0.],
       [1., 1., 4., 0., 0.]])
In [7]:
S3.trace() / 6
Out[7]:
1.0

Example 2

Data

In [8]:
data = {
    'A': {'B':1, 'C':1, 'D': 1},
    'B': {'A':1, 'C':1},
    'C': {'A':1, 'B':1, 'D':1, 'E':1},
    'D': {'A': 1, 'C':1, 'E':1},
    'E': {'C':1, 'D': 1},
}
df = pd.DataFrame(data).fillna(0)
df.sort_index(inplace=True)
df.sort_index(axis=1, inplace=True)
df
Out[8]:
A B C D E
A 0.0 1.0 1.0 1.0 0.0
B 1.0 0.0 1.0 0.0 0.0
C 1.0 1.0 0.0 1.0 1.0
D 1.0 0.0 1.0 0.0 1.0
E 0.0 0.0 1.0 1.0 0.0

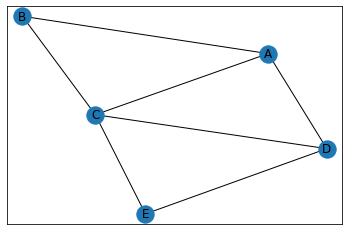

Plot

In [9]:
G = nx.Graph(df)
pos = nx.spring_layout(G)
nx.draw_networkx(G, pos=pos)

Count Triangles

In [10]:
S1 = df.values
S1
Out[10]:
array([[0., 1., 1., 1., 0.],
       [1., 0., 1., 0., 0.],
       [1., 1., 0., 1., 1.],
       [1., 0., 1., 0., 1.],
       [0., 0., 1., 1., 0.]])
In [11]:
S2 = S1.dot(S1)
S2
Out[11]:
array([[3., 1., 2., 1., 2.],
       [1., 2., 1., 2., 1.],
       [2., 1., 4., 2., 1.],
       [1., 2., 2., 3., 1.],
       [2., 1., 1., 1., 2.]])
In [12]:
S3 = S2.dot(S1)
S3
Out[12]:
array([[4., 5., 7., 7., 3.],
       [5., 2., 6., 3., 3.],
       [7., 6., 6., 7., 6.],
       [7., 3., 7., 4., 5.],
       [3., 3., 6., 5., 2.]])
In [13]:
S3.trace() / 6
Out[13]:
3.0
